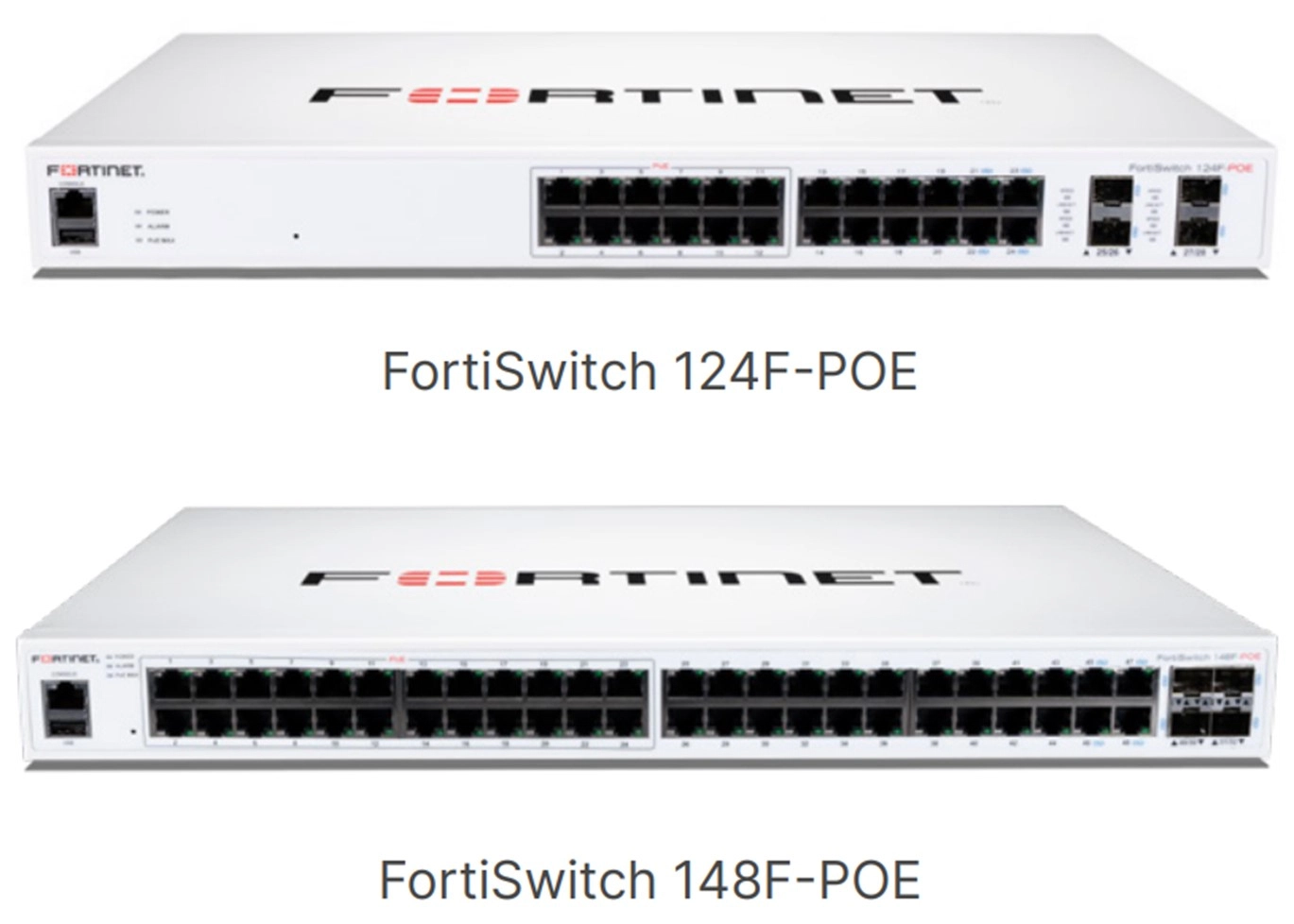

FORTISWITCH 148F-POE | FORTISWITCH 124F-POE | |
網路介面 | 48x GE RJ45 and 4x 10GE SFP+ | 24x GE RJ45 and 4x 10GE SFP+ |
RJ-45 Serial Console Port | 1 | |
PoE Port 數 | 24 (802.3af/at) | 12 (802.3af/at) |
PoE 功率 | 370 W | 185 W |
MTBF | > 10 years |
FORTISWITCH 148F-POE | FORTISWITCH 124F-POE | |
背板頻寬 | 176 Gbps | 128 Gbps |
傳輸效能 | 260 Mpps | 190 Mpps |
MAC Address儲存數 | 32 K | |
網路延遲 | < 1µs | |
VLANs Supported | 4K | |
Link Aggregation Group Size | 8 | |
Total Link Aggregation Groups | 16 | |
Memory | 512MB DDR3 | |
ACL | 640 | |
Spanning Tree Instances | 32 |
FORTISWITCH 148F-POE | FORTISWITCH 124F-POE | |
外形尺寸 | 1 RU Rack Mount | 1 RU Rack Mount |
尺寸(高 x 深 x 寬)(mm) | 44 x 310 x 440 | 44 x 260 x 440 |
重量 | 4.68kg | 3.56 kg |
電源需求 | 100–240V AC, 50-60 Hz | |
雙電源機制 | No | |
消耗功率 (Average / Maximum) | 474.8 W / 476.3 W | 235.9 W / 237.4 W |
散熱效能 | 195.73 BTU/h | 102.982 BTU/h |
工作溫度 | 32°F to 113°F (0°C to 45°C | |
濕度 | 10% to 90% non-condensing | |
噪音值 | 46.9 dBA | 46.3 dBA |
認證與合規性 | FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 |
FORTISWITCH 148F-POE | FORTISWITCH 124F-POE | |
Fortinet 保固 | Limited lifetime** warranty on all models |
