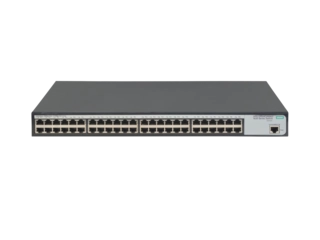

HPE OfficeConnect 1620 Series Switch 網路交換器
HPE OfficeConnect 1620 Series Switch是入門級網路管理的Layer 2 Ethernet Switch，非常適合希望提升網路性能和安全性的小型企業，但沒有增加更多的複雜性和成本。該型號有48x 10/100/1000端口。
互盛提供防火牆推薦、網路交換器與無線基地台等資安鐵三角規劃，歡迎立即洽詢。
互盛提供防火牆推薦、網路交換器與無線基地台等資安鐵三角規劃，歡迎立即洽詢。
左右滑動
系統
Management | • Simple Web management • Secure Web GUI • SNMPv1, v2c, and v3 • Port mirroring • Default DHCP Client mode • Network Time Protocol (NTP) • Manual network time configuration • Dual flash images
|
Quality of service (QoS) | • IEEE 802.1p prioritization with DSCP • Broadcast control • Rate limiting |
Connectivity | • Auto-MDI/MDIX • IEEE 802.3X Flow Control • Loopback detection • Energy Efficient Ethernet • Port power save mode • Cable test |
Performance | • Half- and full-duplex auto-negotiating capability on every port doubles the throughput of every port • IGMP Snooping, v1, v2, and v3 • VLAN support and tagging • Jumbo frame support |
Resiliency and high availability | • Link aggregation |
系統
| Management | • Simple Web management • Secure Web GUI • SNMPv1, v2c, and v3 • Port mirroring • Default DHCP Client mode • Network Time Protocol (NTP) • Manual network time configuration • Dual flash images |
| Quality of service (QoS) | • IEEE 802.1p prioritization with DSCP • Broadcast control • Rate limiting |
| Connectivity | • Auto-MDI/MDIX • IEEE 802.3X Flow Control • Loopback detection • Energy Efficient Ethernet • Port power save mode • Cable test |
| Performance | • Half- and full-duplex auto-negotiating capability on every port doubles the throughput of every port • IGMP Snooping, v1, v2, and v3 • VLAN support and tagging • Jumbo frame support |
| Resiliency and high availability | • Link aggregation |
規格
| I/O ports and slots | 8/24/48 RJ-45 autosensing 10/100/1000 ports | |
| Additional ports and slots | 1 RJ-45 console port | |
| 效能 | 100 Mb Latency | < 7 µs |
| 1000 Mb Latency | < 5 µs | |
| Throughput | up to 11.9/35.7/71/4 Mpps (64-byte packets) | |
| Switching capacity | 48/48/96 Gbps | |
| Routing table size | - | |
| MAC address table size | 8192/8192/16384 entries | |
| 可靠度 | 138.89/123.46/81.3 Years | |
| 環境 | 操作溫度 | 0°C to 40°C |
| 操作濕度 | 5% to 95% | |
| 儲存溫度 | -40°C to 70°C | |
| 儲存濕度 | 5% to 95% | |
| 電器規格 | 輸入電壓及頻率 | 100 - 240 VAC , 50/60 Hz |
| 最大額定功率 | 7W | |
